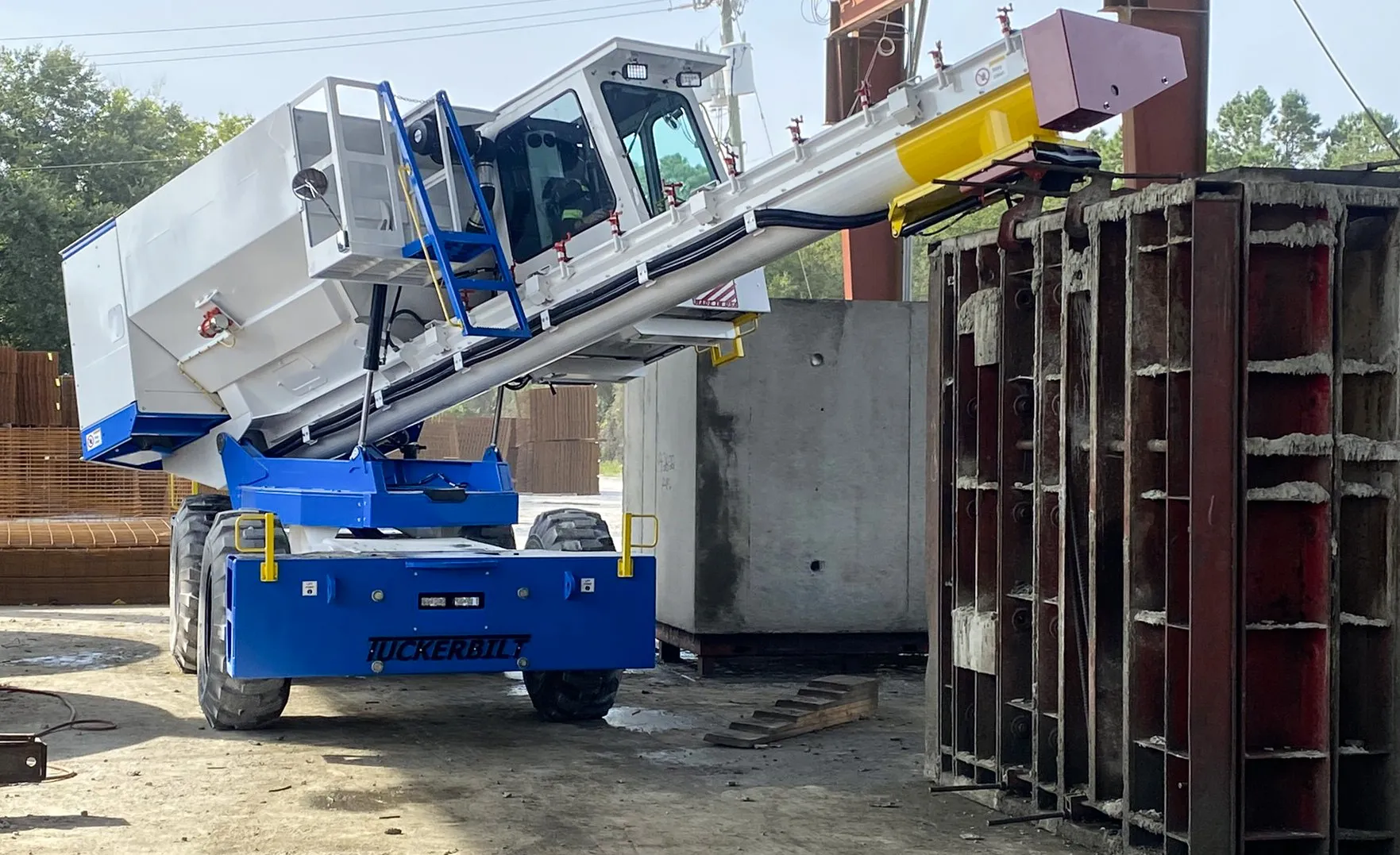

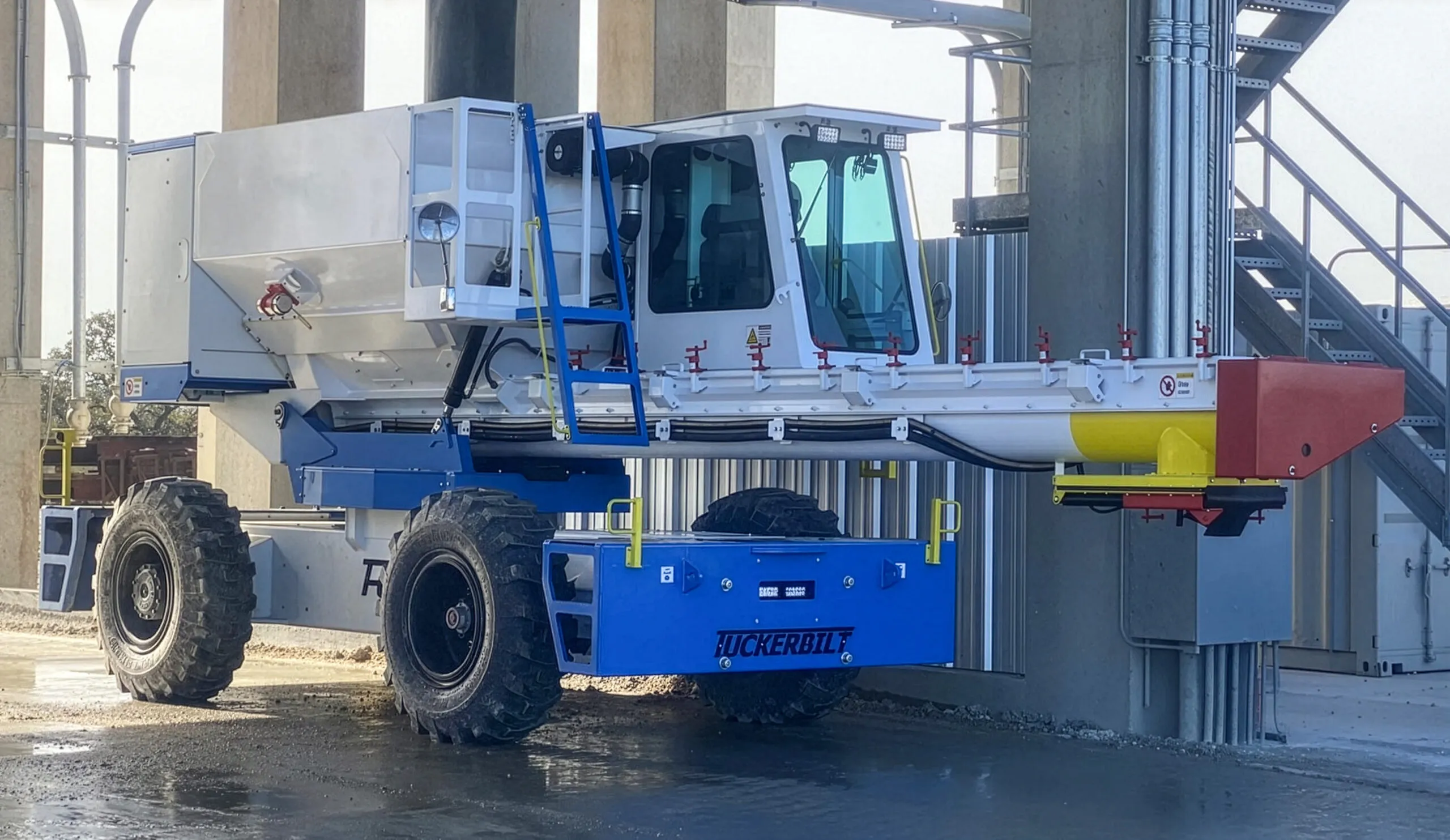

Tuckerbilt® T-644

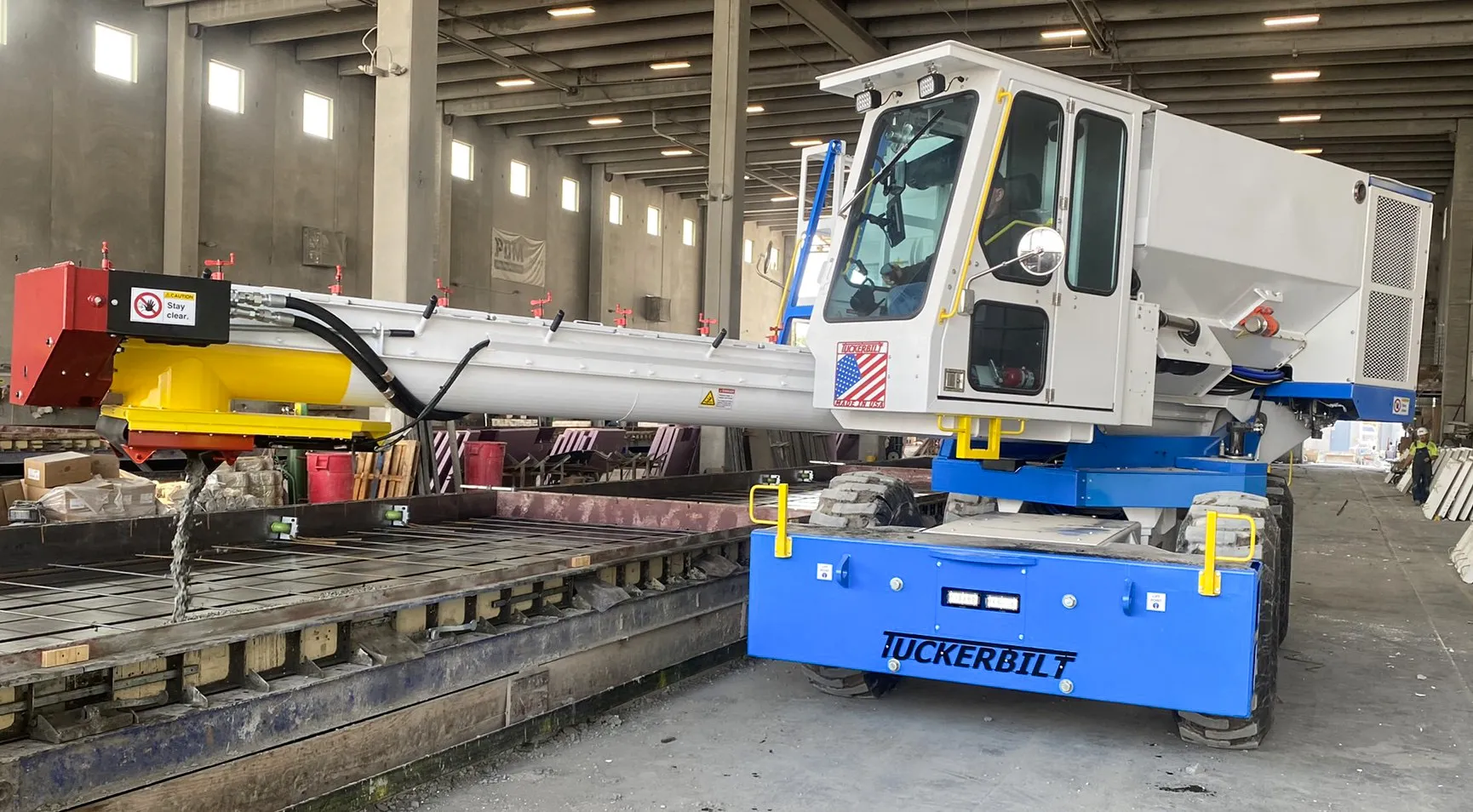

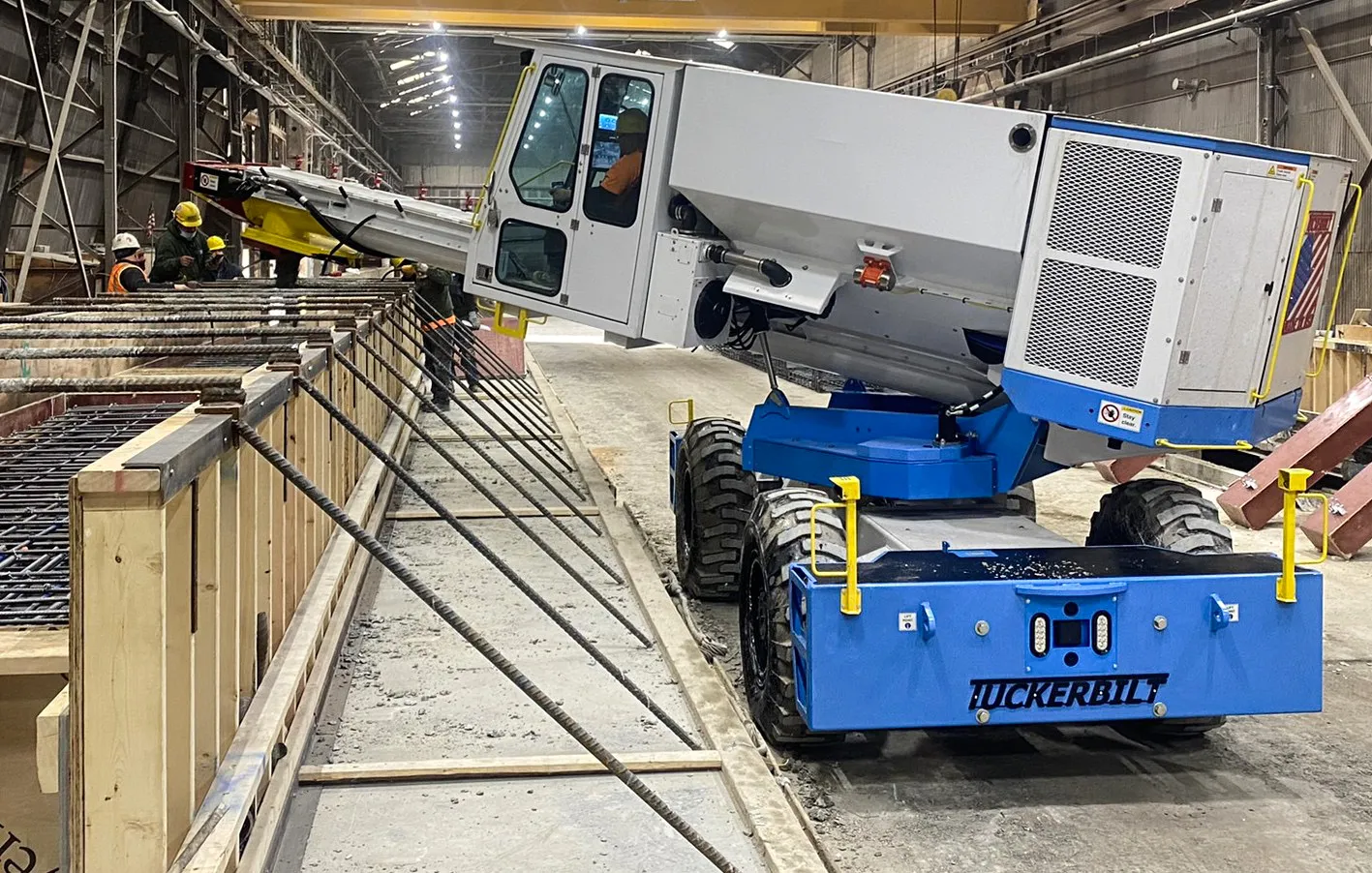

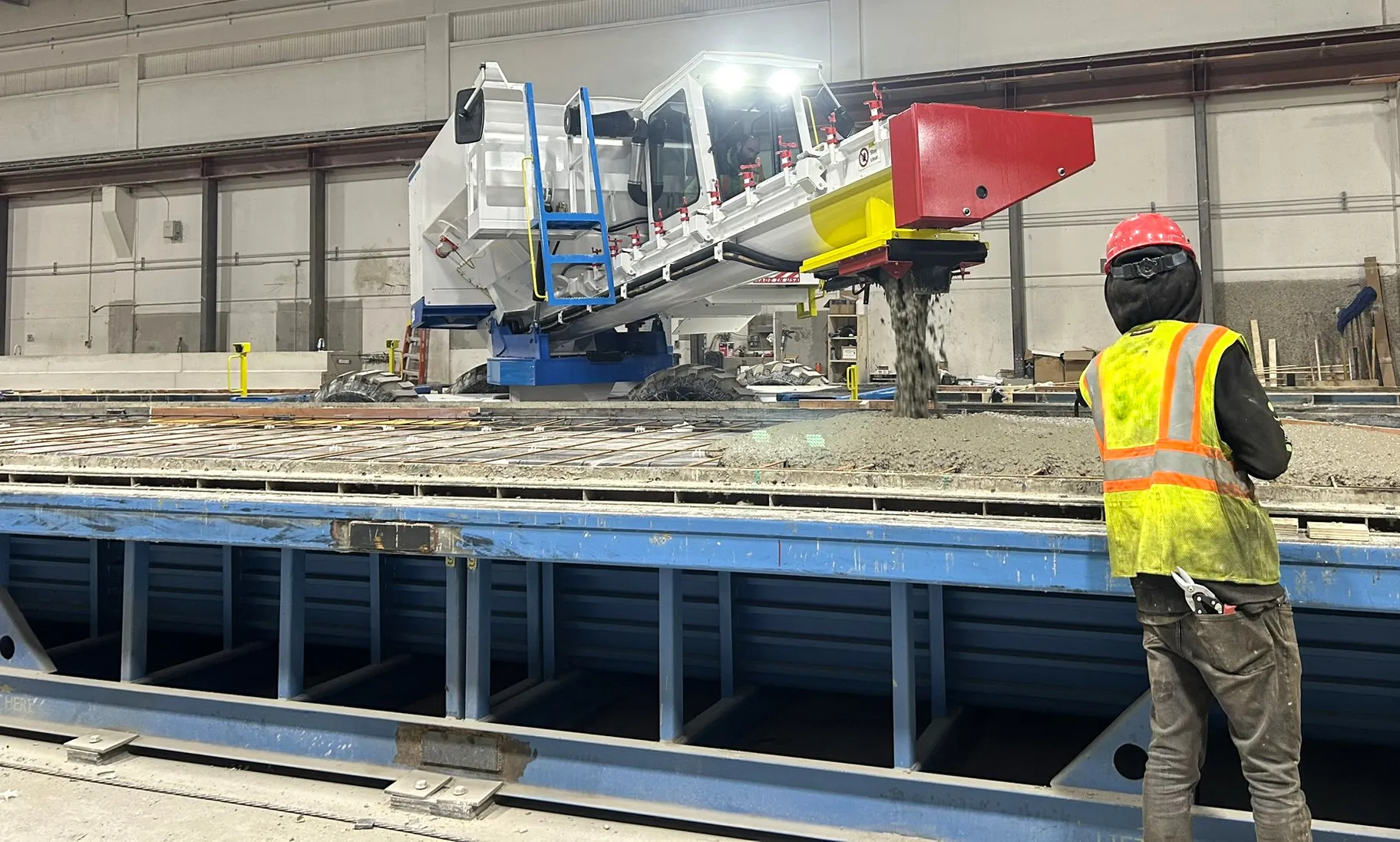

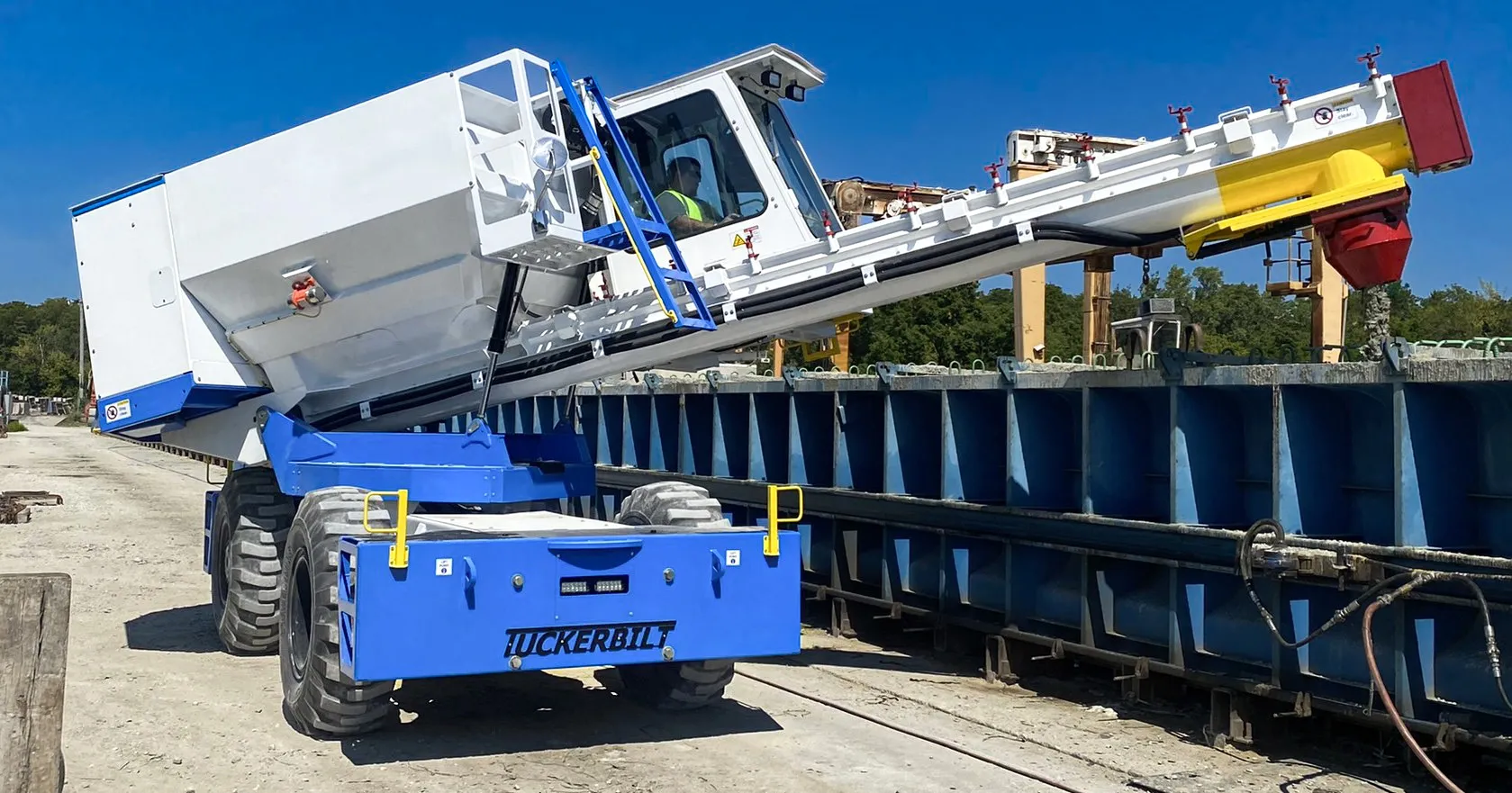

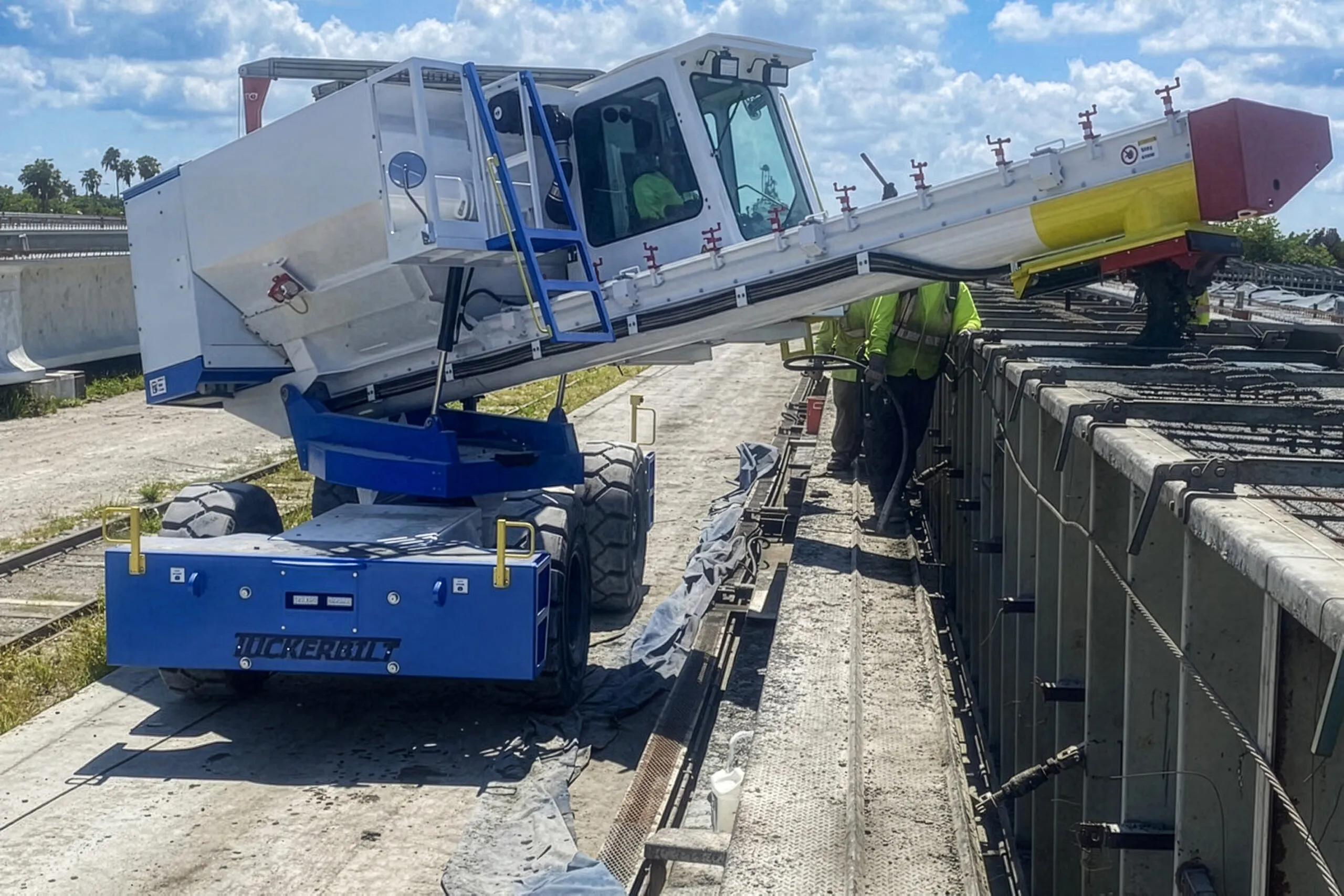

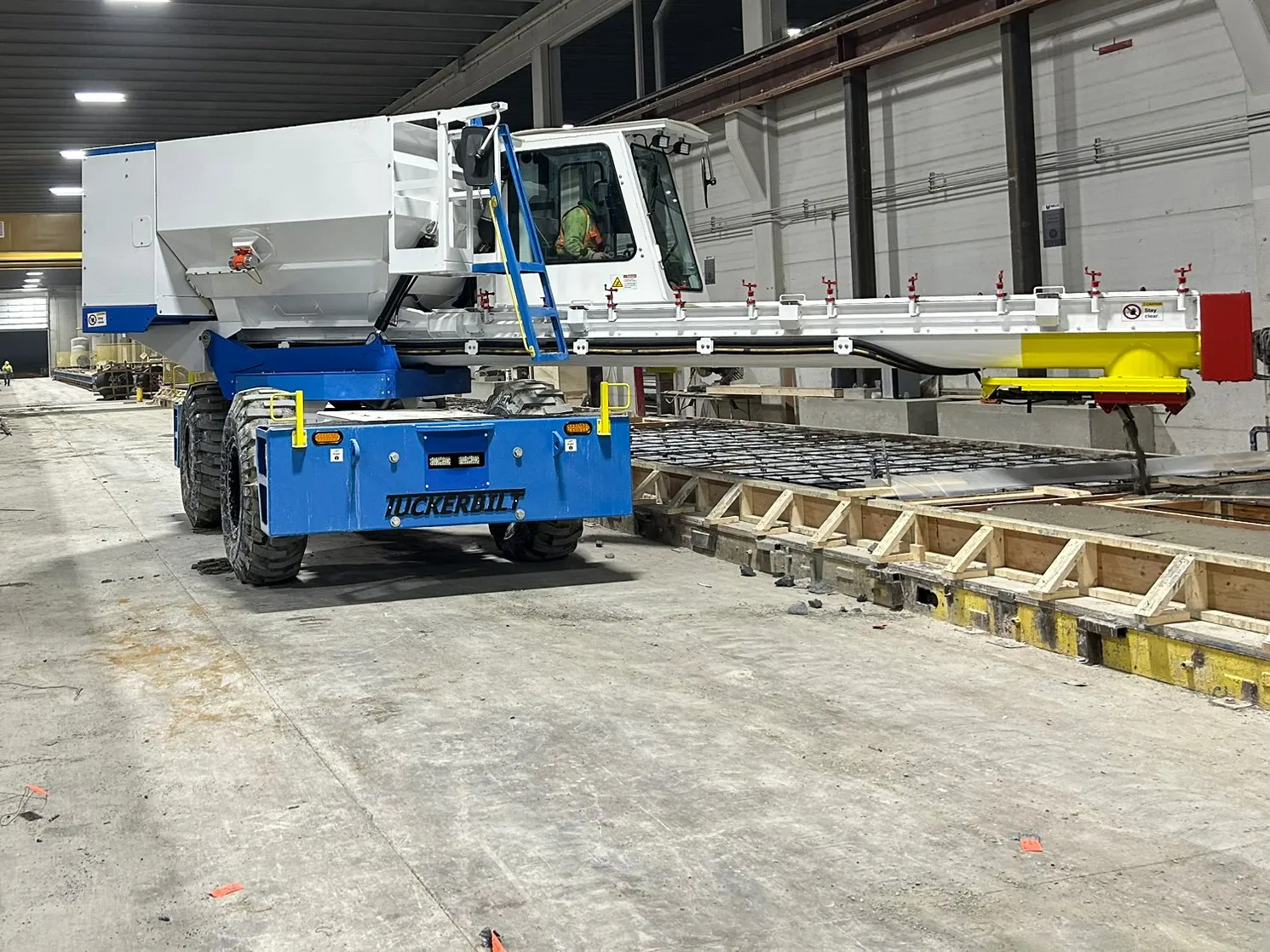

The Tuckerbilt® T-644 is engineered for unmatched power, precision, and reliability, making it the backbone of operations in precast and prestressed concrete plants. Built to handle demanding workflows with ease, the T-644 delivers the performance and durability users count on day after day. It features a hopper-mounted Tier IV engine, a longer chute with higher reach, and an enclosed climate-controlled cab.

Advantages

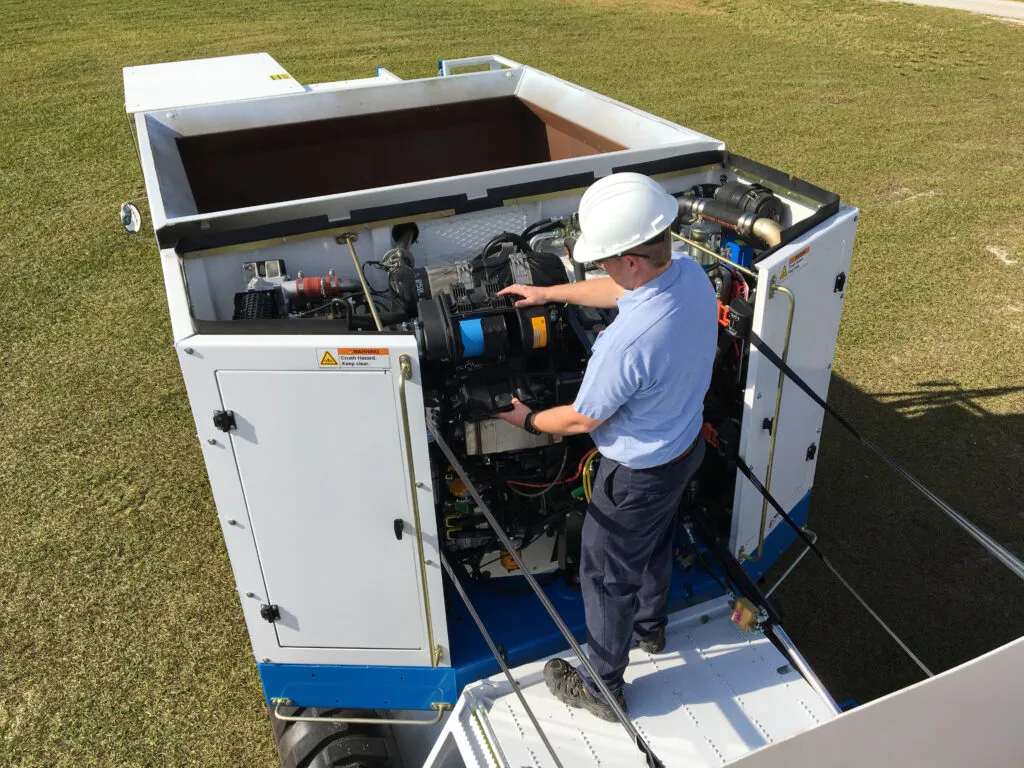

Service Access

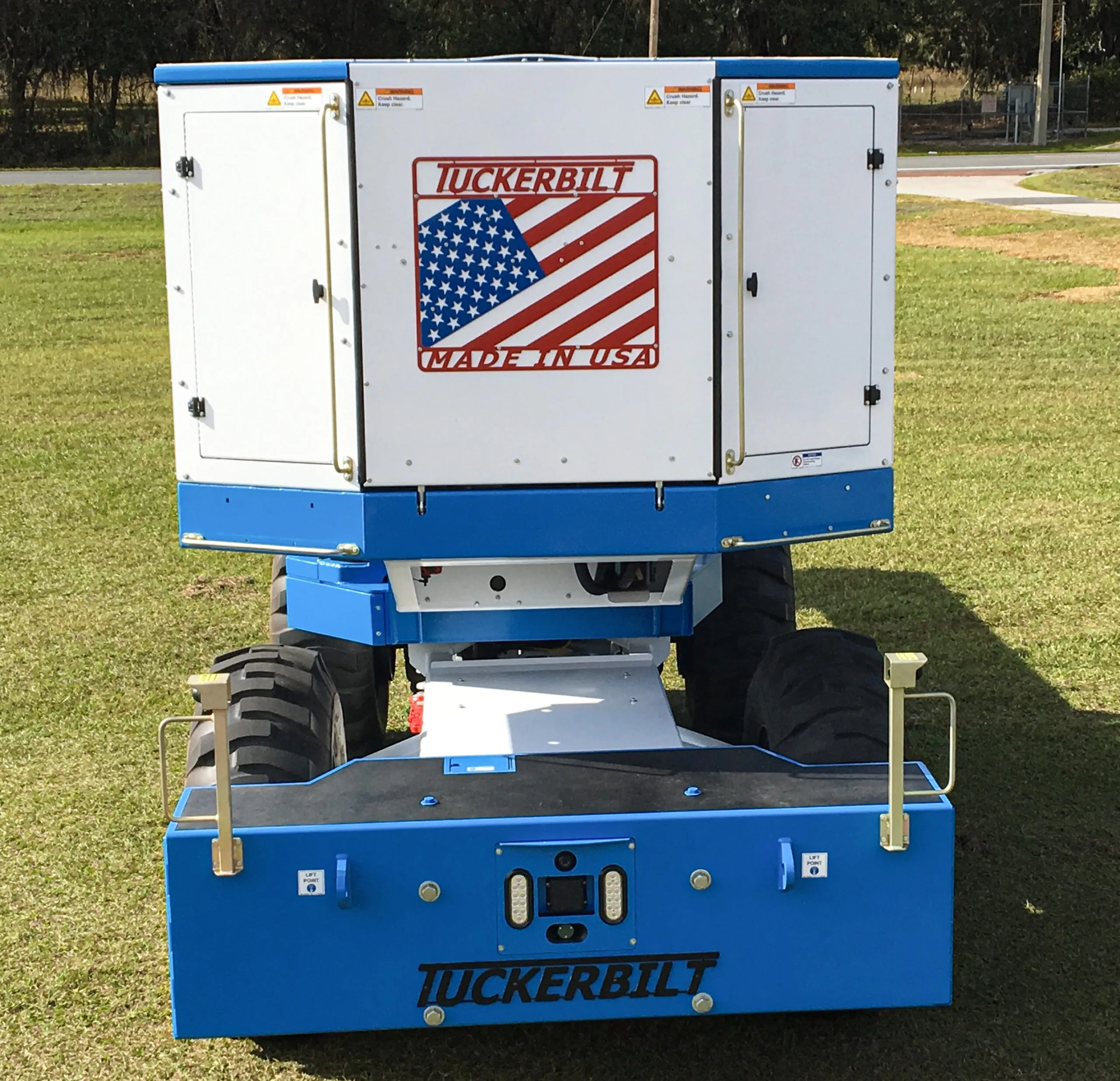

The engine and hydraulics on the rear of the hopper act as a counterweight all while providing simplified access for repairs and maintenance.

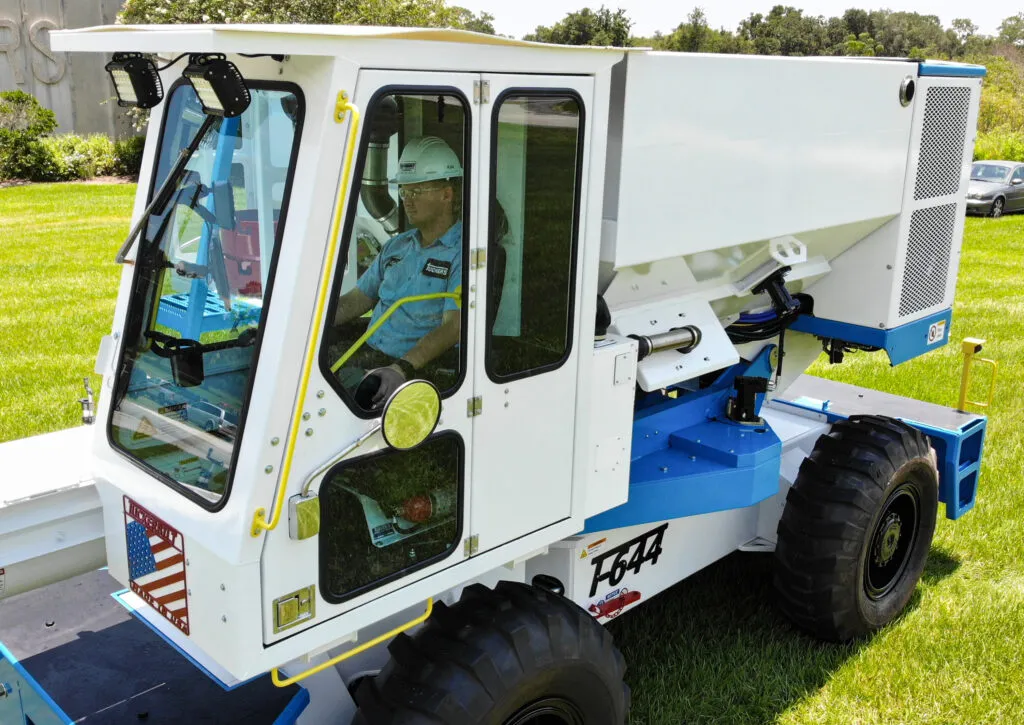

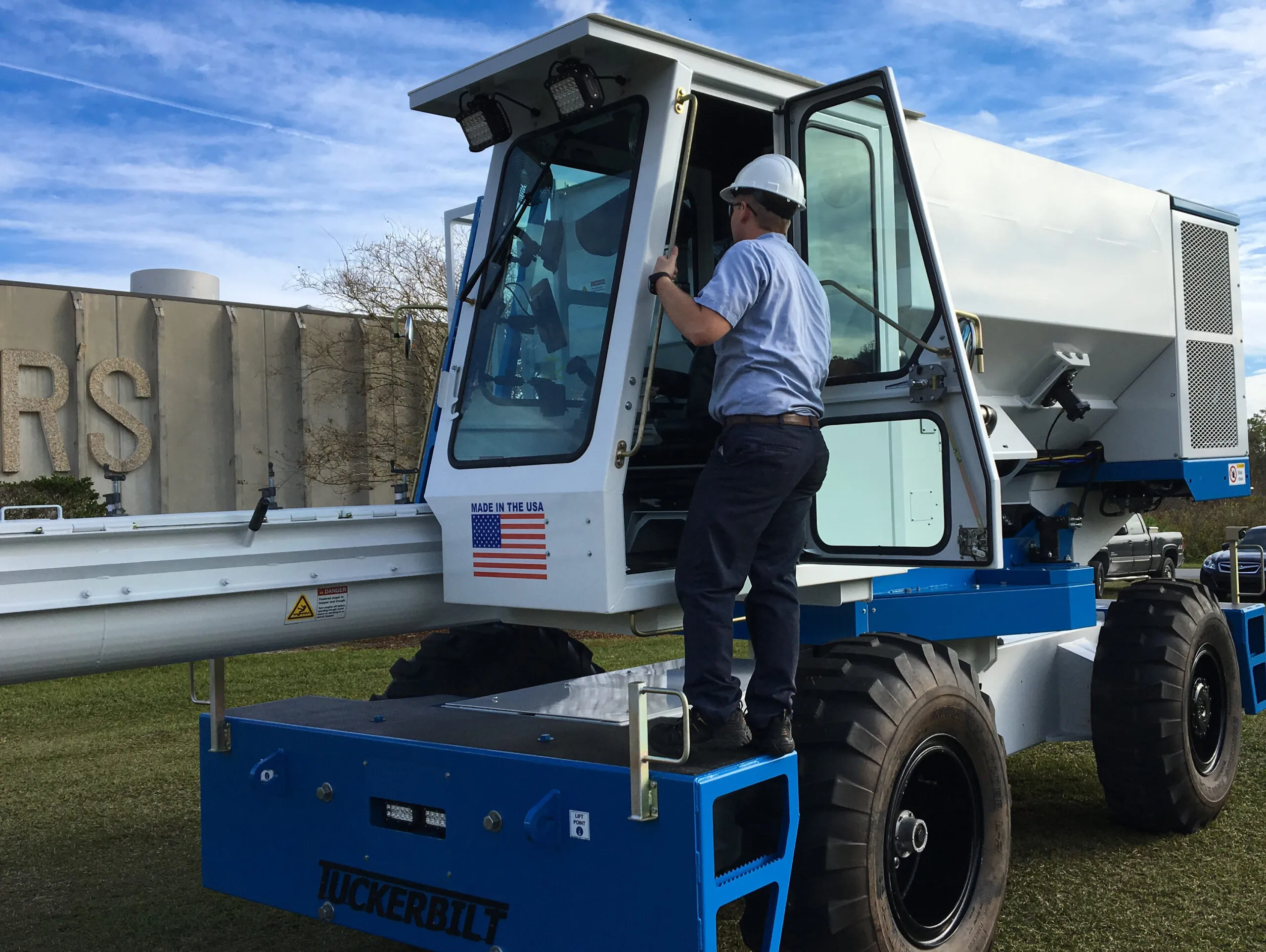

Operator Cab

The enclosed pressurized and climate-controlled cab offers the operator a quiet and safe work environment that exceeds all regulatory requirements for air quality under the OSHA silica rule and MSHA air quality regulations.

Camera System

A rear-mounted radar and back-up camera combined with two side-facing cameras improve operator awareness and ensures the safety of the ground crew.

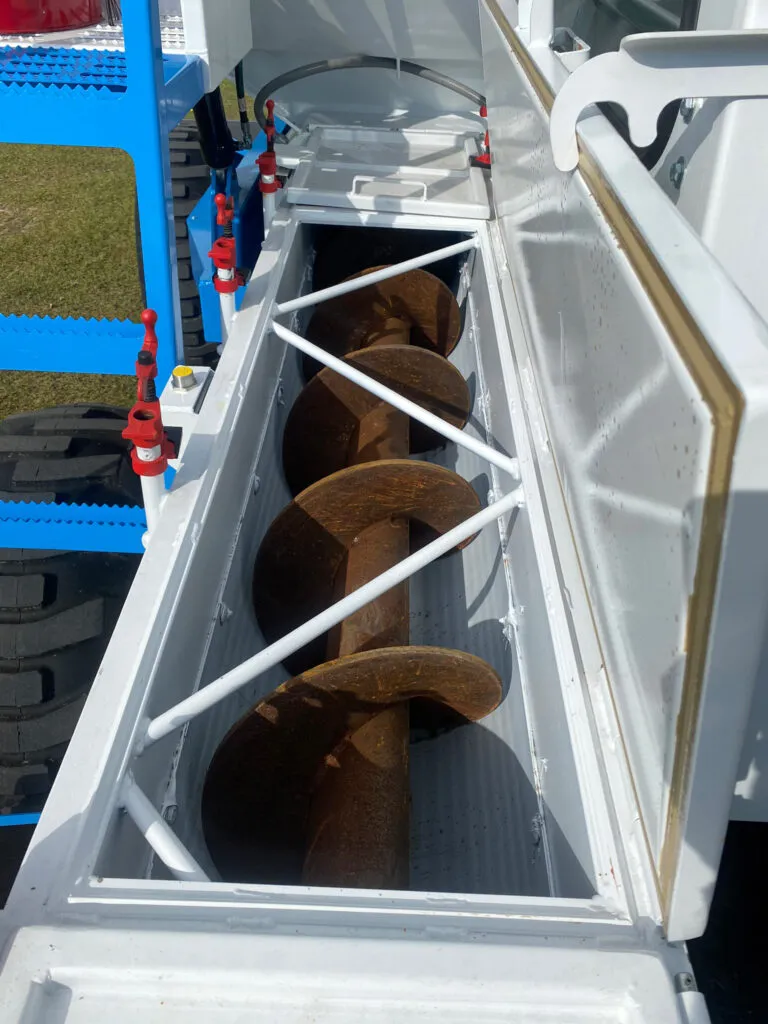

Auger Cover Doors

The auger cover doors incorporate a seal to eliminate leakage, therefore reducing clean up when the work is done. Integrated safety sensors stop the auger if a cover door is opened.

Tuckerbilt® T-644 Concrete Transport Vehicle Specifications

Engine

  • JCB 320/41310 Tier 4 Final Certified
  • 145 hp continuous @ 2200 RPM
  • CAN Technology automatically adjusts RPM to meet power requirements for maximum fuel economy!

Transmission

  • Danfoss H1 hydrostatic drive
  • Speed infinitely variable to maximum of 11 MPH (21 KM) with Creep Mode setting for efficient pouring at the form
  • Maximum grade 6%

Weight

  • Approximately 25,000 lbs. (11, 340 Kg)

Work Function Pump-Valving

  • Pressure compensated, variable flow CAN controlled valving for power on demand means even more fuel savings.

Articulated Steering

  • Standard feature for greatest maneuverability
  • 11 ft. (335 cm): inside tires turning radius
  • 20 ft. (610 cm): outside tires turning radius

Axles

  •  Rear: 30,000 lbs. (13,600 kg) solid mount with planetary reduction
  • Front: 20,000 lbs. (9,072 kg) airbag-mounted for smoother rides
  • Drum-type air-actuated brakes with safety braking system in case of failure
  • Spring brakes for parking

Tires

  • 17.5 x 25 (445.5 mm x 635 mm): loader type

Hopper

  • Capacity: 6 yards (4.58 m3)
  • Integrated splash deflector
  • Swing hydraulic – 90 degrees left and right for full 180 degree reach
  • Lift: Hydraulic
  • Vibrators: Electric

Auger-Trough

  • Fine-tune auger speed to meet demand with a scroll wheel for fingertip control.
  • 100 selectable speeds available in forward and reverse.
  • Handles low-slump, standard mix, and SCC with ease.
  • 11′-10″ (3,613mm) reach beneath the spout centerline.
  • 14″ (9,355 mm) diameter, 3/8″ thick abrasion resistant alloy auger flighting.
  • 15″ (381 mm) trough with replaceable 3/16″ thick abrasion resistant alloy chute sections.

Enclosed Climate Controlled Cab

  • Air-conditioned and heated for reduced exposure to elements
  • Operator-adjustable suspension seat with operator present switch
  • Ergonomic design and ride
    equipped with dual joysticks for full fingertip control of all functions

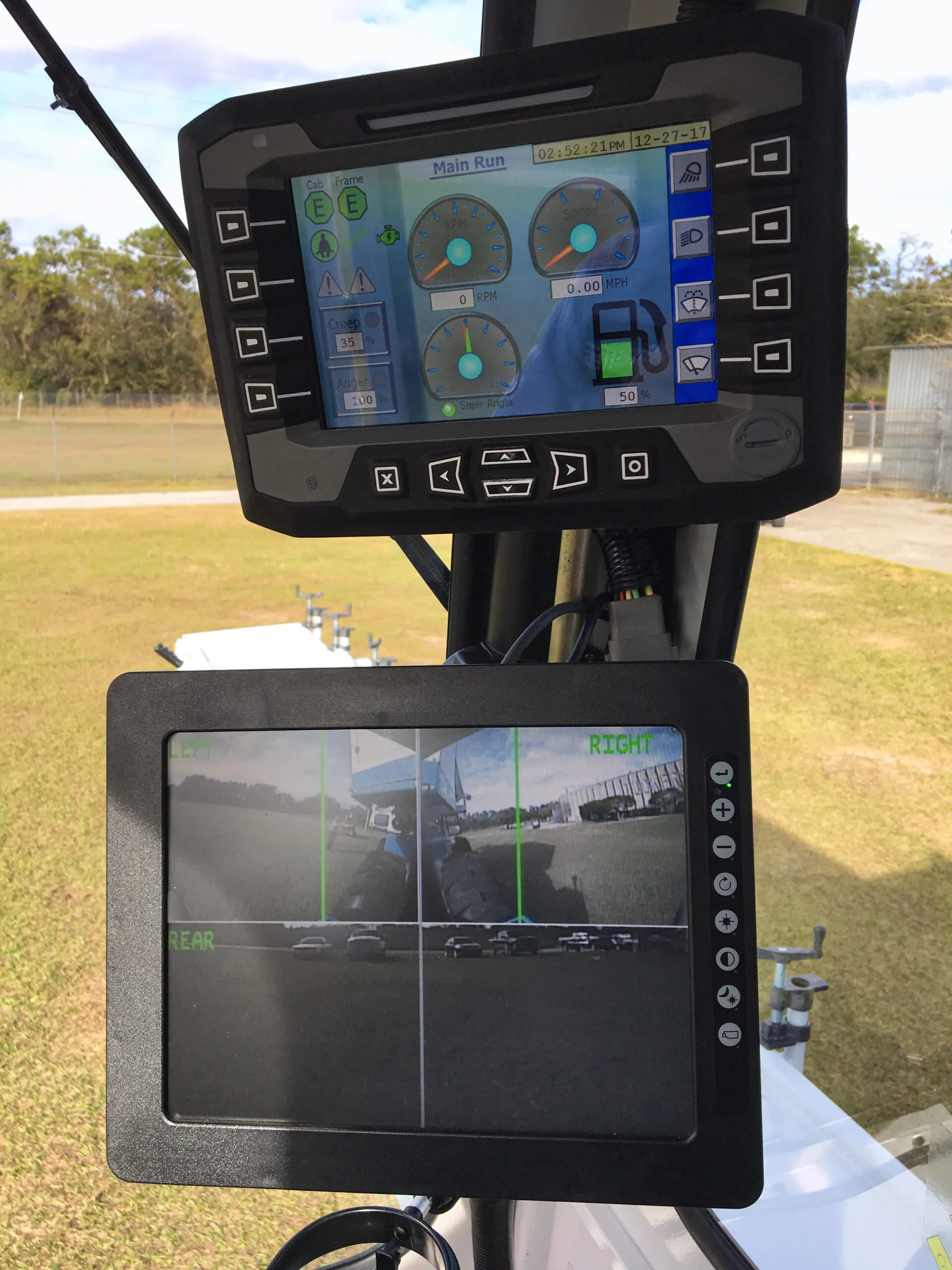

Tri-View Cameras

  • 3 cameras
  • 1 rear-facing
  • 1 on each side
  • Always-on in-cab display for maximum visibility and safety

Accessories

  • 2 work lights
  • 2 head lights
  • 2 backup lights
  • Rear-pointed radar with in-cab alert when approaching danger
  • Painted white and blue

CAN TECHNOLOGY:

 Latest CAN technology allowing for:

  • Improved diagnostics
  • Improved operator safety features
  • Improved mechanical safety features
  • Maintenance logging

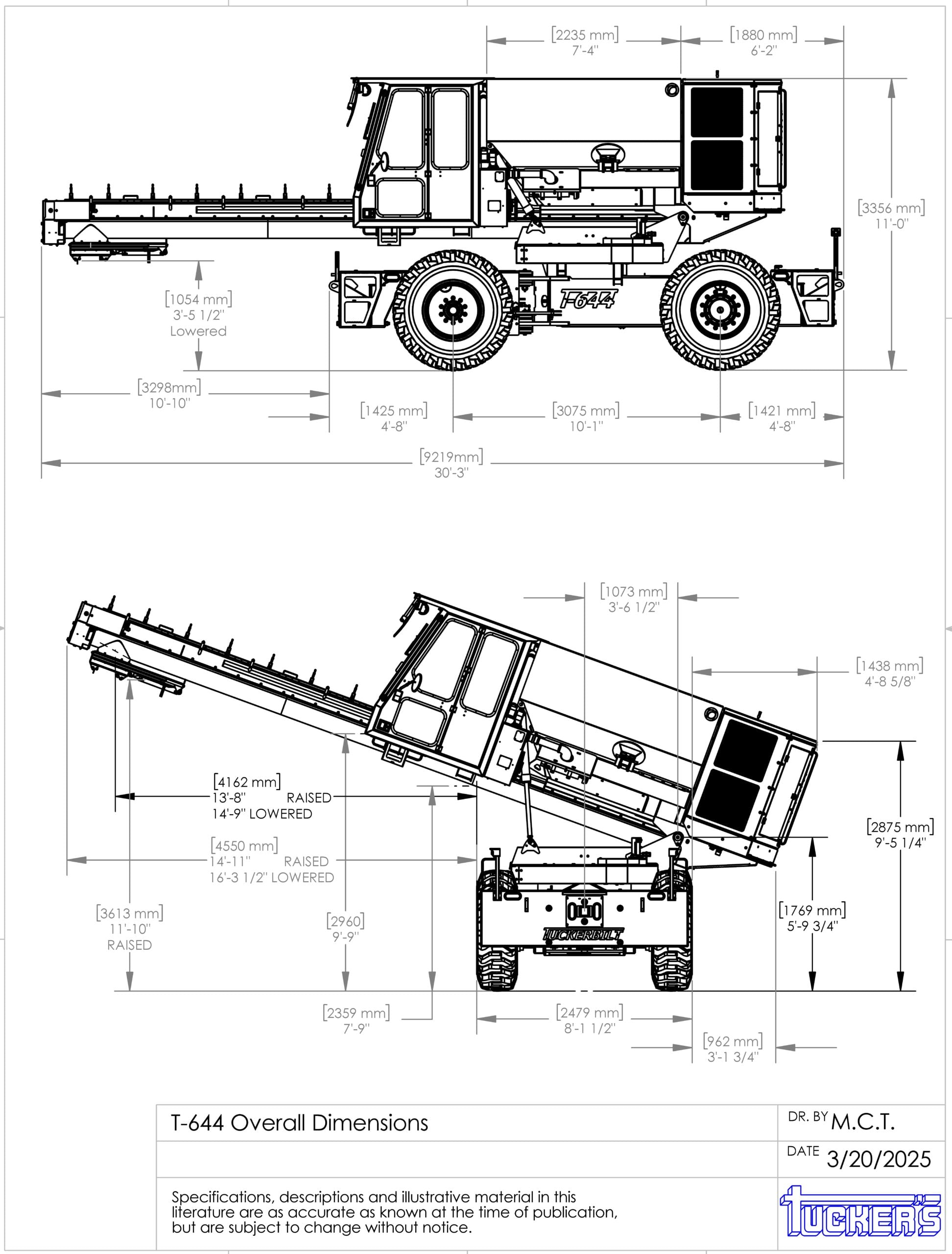

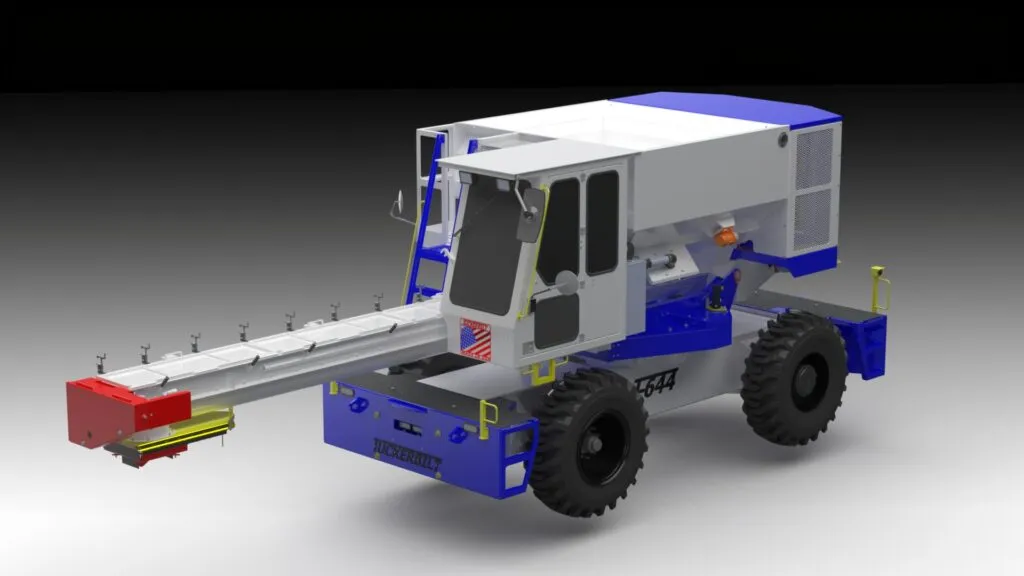

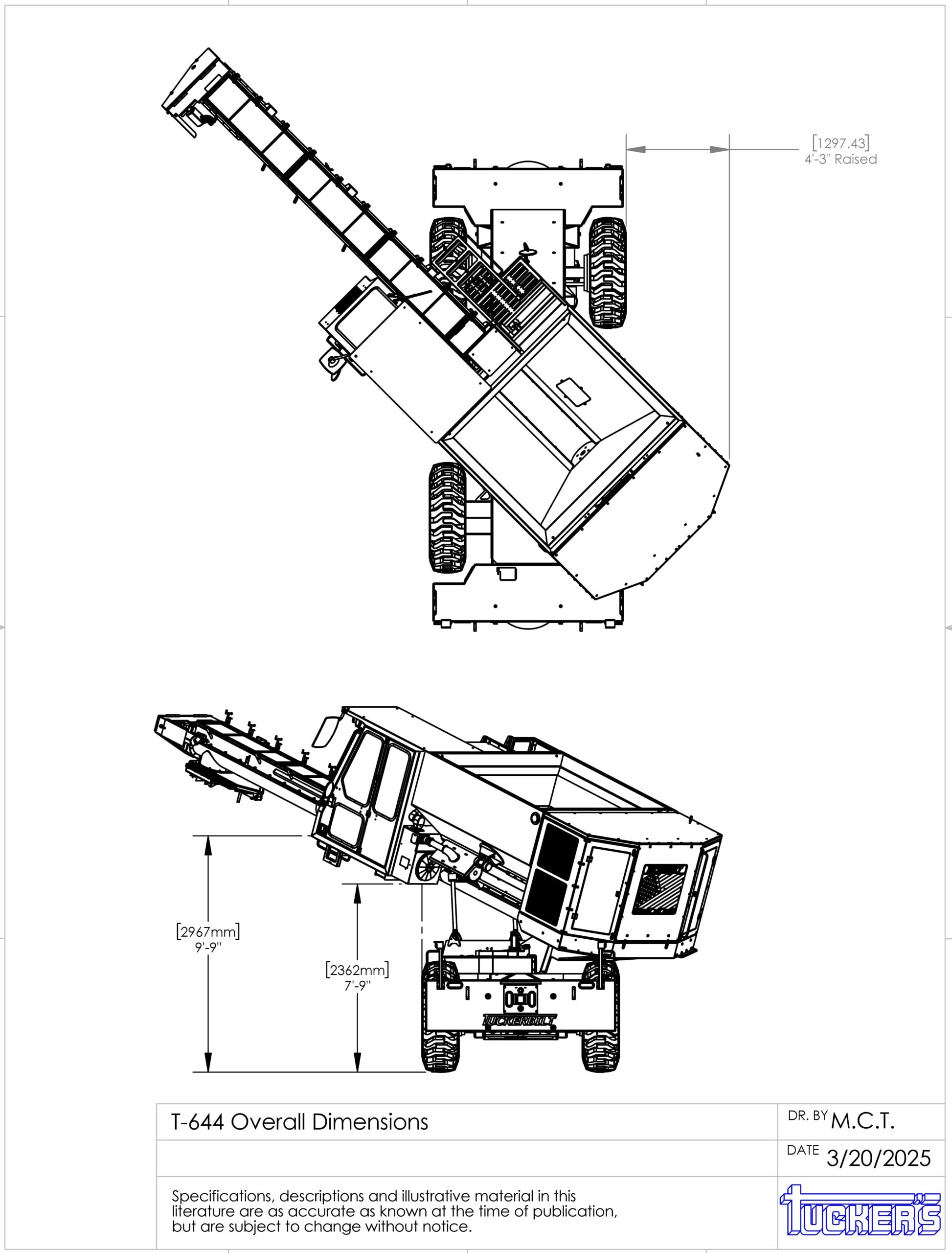

Tuckerbilt® T-644 Drawings
